Buyer's Guide
Horticulture Lighting Group (HLG): Complete Guide
From the Propagation Shelf to the Commercial Floor: The Quantum Board Advantage
HLG didn't just improve on HID lighting — the brand redefined the engineering standard for controlled-environment cultivation. By spreading diode load across a large board surface at low drive current, Quantum Board fixtures achieve photon efficacy thresholds that single-source designs cannot match, running cooler, quieter, and longer than any HPS or legacy LED alternative while delivering the canopy uniformity serious growers demand.
The Engineering Case for Low-Current Diode Arrays
Every HLG fixture traces back to one core decision: run Samsung LM301-series diodes well below their maximum rated current. Lower drive current produces less heat per photon, extends LED lifespan, and raises wall-plug efficiency — advantages that compound meaningfully across a full growing season and multiple harvest cycles.

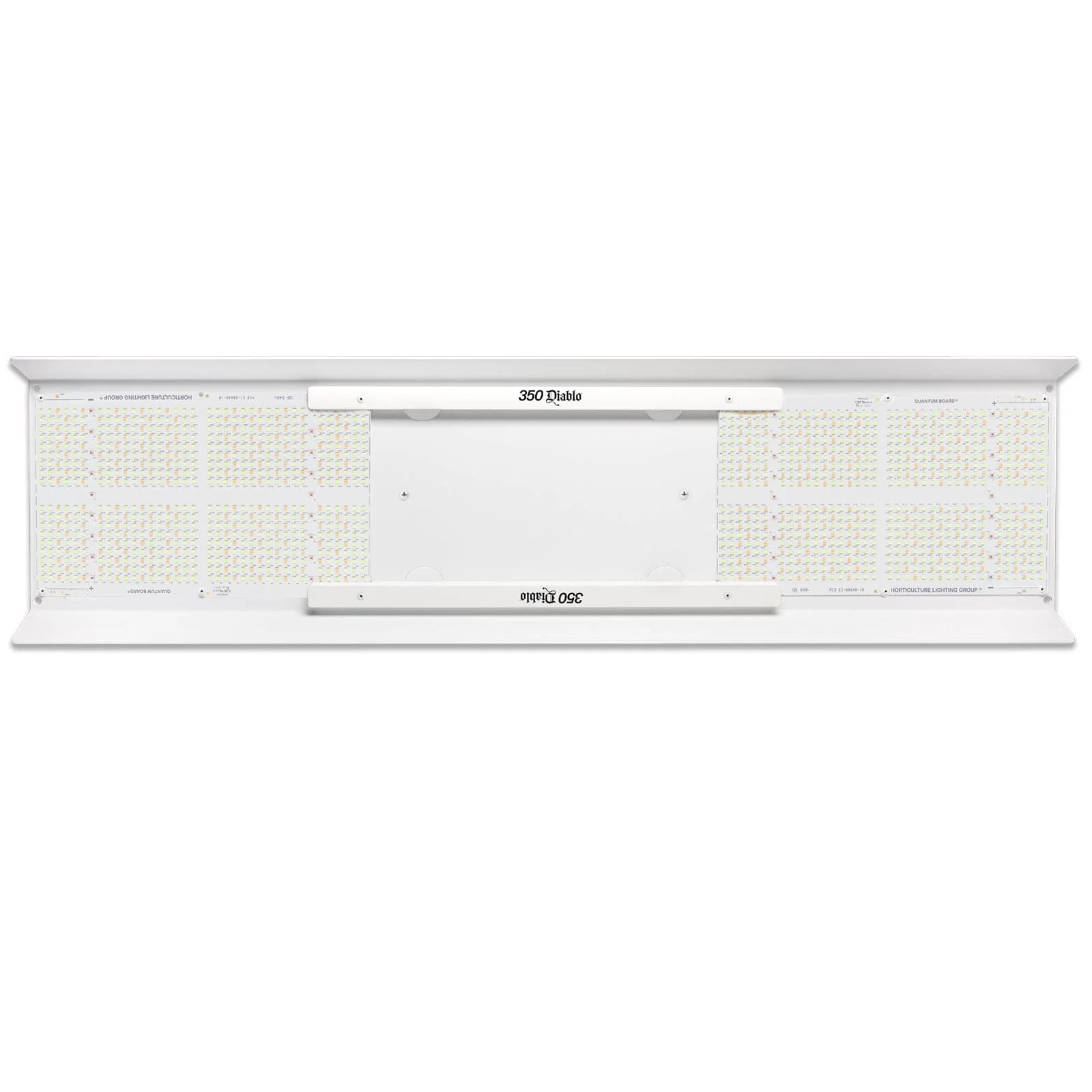

- Passive thermal management: All HLG fixtures dissipate heat through heatsink geometry rather than active fans, eliminating the most common LED failure point. The HLG 350 Diablo replaces a 600W HPS draw while consuming only 330 watts — zero moving parts, zero noise, zero maintenance cycle.
- Stage-matched spectral profiles: The lineup separates veg-optimized output — like the blue-rich HLG 250 VEG Pro, tuned to suppress internodal stretch and promote lateral branching — from full-cycle Diablo fixtures engineered to drive flower density and resin development across a 5×5 canopy.
- Modular supplemental UVA: The HLG 30 UVA Supplement Bar adds targeted ultraviolet-A output to any existing setup, activating secondary metabolite production in the final weeks of flowering without requiring a complete fixture overhaul.
Matching the Right HLG Fixture to Your Operation
Selecting the correct HLG model starts with two inputs: canopy footprint and cultivation stage. The lineup covers spaces from a 2×2 closet through multi-light commercial rooms, with distinct models for veg-only environments and full-cycle operations.
- Small-space and propagation: The HLG 100 V2 covers a 3×3 vegetative footprint and a 2×2 flowering footprint on 95 watts — the standard entry point for tent growers and clone stations. The HLG 65 V2 Veg scales further down for dedicated seedling racks where minimizing canopy height is a priority.

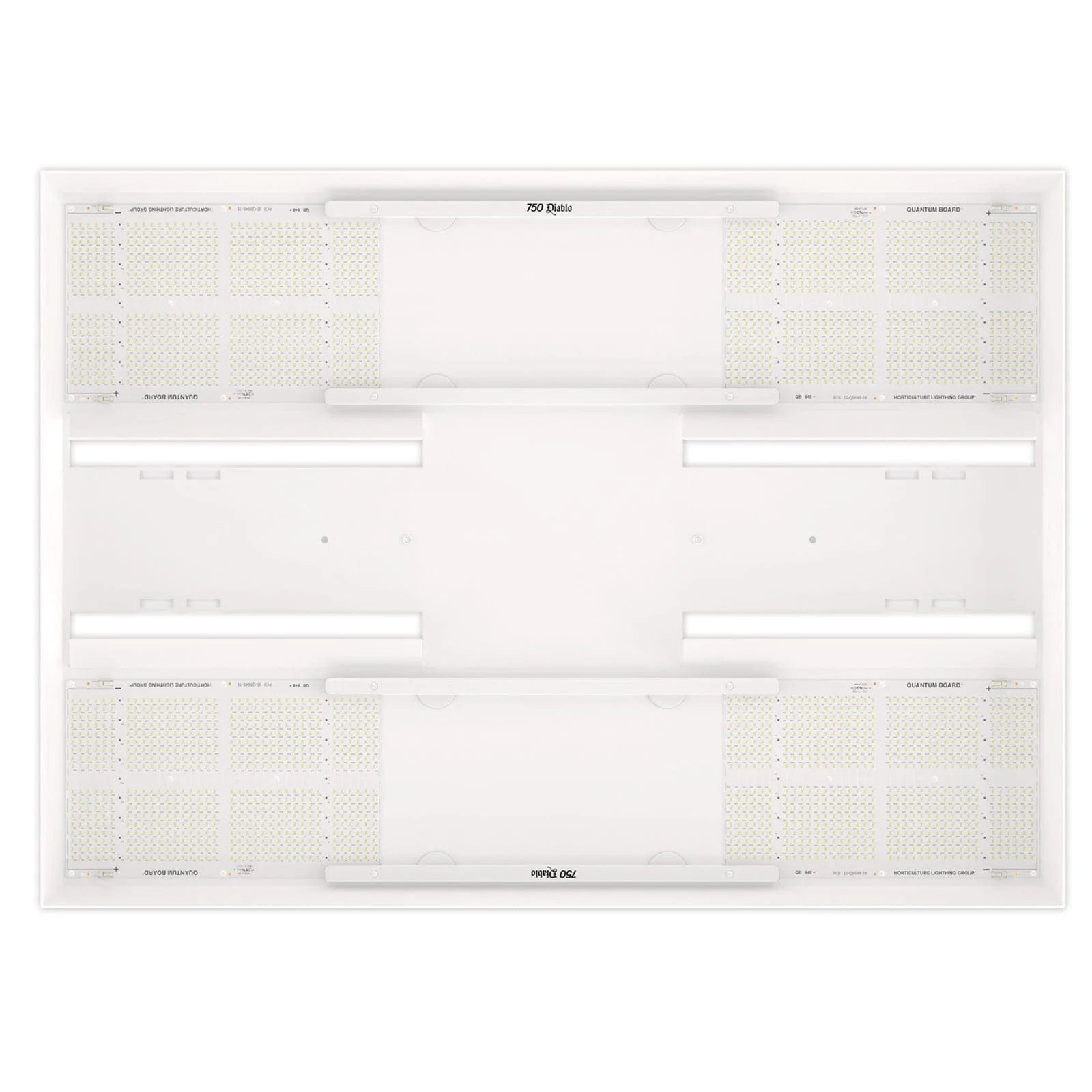

- Commercial 5×5 flowering — three variants: The HLG 750 Diablo is the core standard, delivering 2,056 PPF on 715 watts in a direct 1,000W HPS replacement. The 750 Diablo ES extends the vegetative footprint to 6×6 through an enhanced spectrum profile suited to rooms running a single fixture across both stages. The 750 Diablo X pushes photon efficacy to 2.95 µmol/J, the highest in the 750-watt tier.
- Centralized fixture control: The Growflux Access Point Controller networks up to 1,000 compatible HLG fixtures within 500 feet, enabling synchronized scheduling, remote dimming, and sunrise/sunset simulation across an entire facility from one interface. Pair with adjustable light hangers to dial in canopy distance precisely as plants transition between growth stages.
Getting the Most From HLG Quantum Board Technology
HLG's passive-cooled design and dimmable drivers offer more tuning latitude than most fixed-output alternatives. Several practices consistently translate to better DLI management and extended fixture service life.
- Respect manufacturer mounting distances: The 750 Diablo ES specifies 15–24 inches above the canopy during flowering and 36 inches during vegetative growth. Running at these distances prevents photooxidative stress while preserving the PPFD uniformity that Quantum Board geometry is engineered to produce — deviating upward unnecessarily wastes DLI; deviating downward invites bleaching.
- Time UVA supplementation deliberately: Introducing the HLG 30 UVA Bar 2–3 weeks before harvest — rather than running it continuously — concentrates the UV stress response during the period when terpene and cannabinoid synthesis is most active, without subjecting younger plants to unnecessary UV load earlier in the cycle.
- Build the Growflux network before scaling: Growers expanding from a single tent to multi-room operations can add fixtures to the Growflux controller network incrementally, with each new fixture inheriting the existing photoperiod schedule and dimming curve automatically — eliminating manual reconfiguration at every expansion step.
The engineering rationale behind HLG's Quantum Board architecture — and how the low-current diode array delivers measurable gains in canopy uniformity and energy efficiency — is examined in detail in The Innovation Behind HLG Quantum Boards.
Frequently Asked Questions
What makes HLG's Quantum Board design different from other LED grow lights?
HLG's Quantum Boards distribute hundreds of Samsung LM301-series LEDs across a large aluminum surface and drive each diode well below its rated current. Lower drive current produces less heat per photon, higher wall-plug efficiency, and significantly longer diode lifespan compared to designs that push fewer, larger LEDs harder. The outcome is a fixture that delivers more usable photons per watt, spreads them more uniformly across the canopy, and generates substantially less waste heat — all without requiring active cooling fans or high-maintenance components.
Which HLG light is best suited for a 4×4 or 5×5 grow tent?
The HLG 750 Diablo is the standard choice for a 5×5 flowering canopy, delivering over 2,000 PPF on a 715-watt draw with four Diablo Quantum Boards. For a 4×4 flowering footprint, the HLG 350 Diablo covers a 3×5 canopy on 330 watts and serves as a capable alternative for medium-sized tent builds. The HLG 200 R SPEC handles smaller 3×3 footprints for compact closet grows. Growers prioritizing the highest output-per-watt at the 5×5 tier should consider the 750 Diablo X, which reaches 2.95 µmol/J efficacy.
What is the difference between the HLG 750 Diablo, 750 Diablo ES, and 750 Diablo X?
All three models operate in the 715-watt range and cover a 5×5 flowering canopy. The HLG 750 Diablo is the core standard fixture with a full-spectrum Diablo board configuration optimized for flowering. The 750 Diablo ES uses an Enhanced Spectrum profile that broadens spectral output for improved performance across both flowering and vegetative stages, and extends the vegetative footprint to 6×6 — making it the better fit for single-fixture rooms that transition between stages. The 750 Diablo X delivers the highest photon efficacy in the series at 2.95 µmol/J, representing the performance-maximizing choice for growers where PPF-per-watt is the primary procurement criterion.
Do HLG fixtures require external cooling or active ventilation?
HLG fixtures use passive cooling exclusively — large aluminum heatsinks dissipate heat through natural convection without any built-in fans. No external cooling hardware is required at the fixture level. This design eliminates the most common failure point in LED grow lights and keeps fixtures completely silent during operation. Growers should maintain adequate ambient airflow within the grow space to prevent heat accumulation around the fixture, but the lights themselves introduce no additional mechanical noise or fan maintenance requirements.
Can the HLG 250 VEG Pro be used for flowering, or is it a veg-only fixture?
The HLG 250 VEG Pro is tuned with a blue-rich spectrum that suppresses internodal stretch and promotes compact, lateral vegetative development. It can complete a full seed-to-harvest cycle, but cultivators targeting maximum flower density and resin development in a 3×4 canopy will produce better results pairing the VEG Pro stage with a full-spectrum Diablo fixture for flowering rather than running the VEG Pro through to harvest. The blue-dominant output that makes it exceptional for vegetative growth is less suited to driving the red-wavelength photosynthetic processes that govern flower and trichome production.
What does the HLG Growflux Access Point Controller do, and who needs it?
The HLG Growflux Access Point Controller networks up to 1,000 compatible HLG fixtures within a 500-foot range. It enables centralized scheduling, remote dimming, and sunrise/sunset simulation across an entire facility from a single interface. For single-tent growers, it adds programmable photoperiod automation to one fixture. For commercial operators managing multiple rooms, it eliminates the need to manually adjust each light when changing photoperiods or transitioning between growth stages — every networked fixture inherits the updated schedule simultaneously, reducing both labour time and the risk of inconsistent light cycles across rooms.
How and when should the HLG 30 UVA Supplement Bar be used?
The HLG 30 UVA Supplement Bar mounts alongside existing HLG fixtures and delivers targeted ultraviolet-A wavelengths that primary grow lights do not produce in meaningful quantities. UV-A exposure activates the plant's stress-response pathways, stimulating increased production of terpenes, flavonoids, and cannabinoids. The strongest response comes from introducing the bar during the final 2–3 weeks of flowering rather than running it continuously through the entire cycle. This timed approach concentrates UV stress during the period when secondary metabolite synthesis is most active, while avoiding unnecessary UV exposure during the vegetative and early flowering stages.
Does HLG offer a warranty on fixtures purchased through Trimleaf in Canada?
HLG provides a five-year warranty on fixtures including the Diablo series, 750 Diablo X, 750 Diablo ES, VEG Pro lineup, and the Scorpion series, covering defects in materials and workmanship. Purchasing through Trimleaf.ca provides warranty support through an authorized Canadian channel, avoiding the import complications, duties, and extended resolution timelines that can arise when purchasing directly from US-based distributors and shipping cross-border for warranty service.
